A protection substation is a power substation that includes equipment for the purpose of protecting other equipment in the electrical system. The primary function of a protection substation is to provide a high degree of reliability and security for the operation of the electrical system.
A substation is a vital part of the electrical grid. It is where electricity is transformed from high voltage to low voltage so it can be used by businesses and homes. A protection substation is a type of substation that has special equipment to protect the transformer and other equipment from damage.
This type of substation is typically located near power plants or other large generators.
Substation Relay Protection Overview | Faults | Relays | Protection Types | Power System Operation
Substation Protection And Control
A substation is a critical part of the electricity grid. It is where electricity is transformed from high to low voltage or vice versa, and it also serves as a hub for distributing power. Because substations are such an important part of the grid, it is vital that they are properly protected and controlled.
There are many different types of substation protection and control systems, but they all share the same goal: to keep the substation operating safely and efficiently. The most common type of protection system is called a differential protection system. This system monitors the voltage and current flowing into and out of the substation, and trips circuit breakers if it detects an imbalance.
This protects the equipment from damage due to overloading or faults.
Another type of protection system is called a distance protection system. This system uses sensors to monitor the impedance between two points on a power line.
If the impedance decreases (indicating a fault), the distance protection system will trip circuit breakers to isolate the problem area.
Substation control systems are used to automate various tasks at the substation, such as controlling circuit breakers, monitoring equipment status, and managing power flows. Control systems can be either local or remote; remote control systems are typically used for larger substations while smaller ones often have local control panels.
Many modern control systems use computer-based interfaces that make them easier to use and more reliable than older analog controls.
Substation Protection System Pdf
The Substations are the integral part of power system and their protection is essential for the continuity of supply. The primary objective of substation protection is to clear faults with minimum interruption to consumers. Faults can occur due to many reasons like equipment failure, human error, natural calamities etc.
To minimize the impact of faults, various types of protection schemes are used in substations.
One such type of protection scheme is Substation Protection System (SPS). SPS is a computer-based system that continuously monitors the voltage and current at different points in a substation.
It also keeps track of other important parameters like temperature, pressure etc. If any abnormal condition is detected, SPS sends out an alarm to the concerned personnel. It also automatically trips the circuit breaker if required.
This helps in minimizing the damage caused by faults and also reduces downtime.
SPS consists of two parts – hardware and software. The hardware part includes sensors, relays, meters etc. which are used for monitoring purposes.
The software part includes algorithms that are used for analyzing data and taking decisions accordingly.
SPS offers many benefits like improved safety, reduced downtime, better coordination between different devices etc. However, it is important to note that SPS cannot completely eliminate faults from occurring but it can certainly help in reducing their impact on power system operation.
Substation Protection Devices
A substation is a critical part of the electrical grid, and protection devices are used to keep the substation and its equipment operating safely. There are many different types of substation protection devices, each with its own purpose.
The main types of substation protection devices are circuit breakers, fuses, reclosers, and ground fault detectors.
Circuit breakers are used to interrupt the flow of electricity in case of an overload or short circuit. Fuses protect against overcurrents by melting and breaking the circuit when too much current flows through them. Reclosers automatically close a circuit after it has been opened by a breaker or fuse, allowing power to be restored quickly after an outage.
Ground fault detectors detect when there is a current leakage to ground and can trip breakers or open fuses to prevent damage to equipment.
Substation protection devices play a vital role in keeping the electrical grid safe and reliable. Without them, outages would be more frequent and could cause serious damage to equipment.

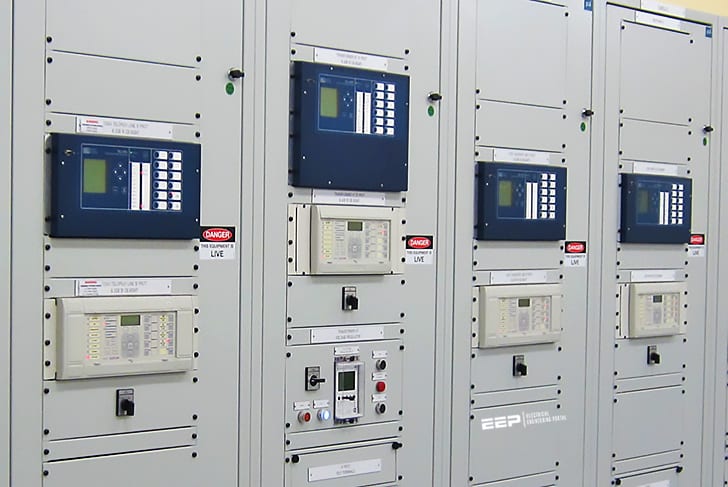

Substation Protection Relays
In the power industry, substation protection relays are critical components. They provide a last line of defense against system faults and help to keep the power flowing. Here’s a closer look at how these devices work and why they’re so important.
When an electrical fault occurs, substation protection relays detect the problem and send a signal to breakers that isolate the issue. This prevents damage to equipment and keeps the power flowing to other parts of the grid.
There are many different types of substation protection relays, each designed for a specific purpose.
For example, some relays are used to protect transformers while others are used to protect high-voltage lines.
Substation protection relays play a vital role in keeping the electricity flowing safely and reliably. Without them, our power grid would be much less reliable – and that’s something we can all appreciate!
What is the Main Protection of Transformer
A transformer is a device that transfers electrical energy between two or more circuits through electromagnetic induction. A varying current in one coil of the transformer produces a varying magnetic field, which in turn induces a voltage in another coil. Power can be transferred between the two coils without any physical connection between them.
Transformers are used to increase or decrease the alternating voltages in electric power applications. The Main Protection of Transformer is from over-voltage, over-current, and thermal runaway conditions.
Transformer Protection Wikipedia
As the name suggests, transformer protection is the process of protecting transformers from damage. This can be done through a number of methods, including using fuses or circuit breakers, installing thermal sensors, or using surge suppressors. By protecting transformers from damage, we can help to ensure that the electricity supply remains stable and reliable.
What is Transformer Protection
A transformer is a static device which transforms electrical energy from one voltage level to another. It does this by linking two or more coils of wire (the primary and secondary coils) through an iron core. The primary coil is connected to the power supply, and the secondary coil is connected to the load.
The ratio of turns in the primary coil to the secondary coil determines the voltage transformation ratio.
The function of a transformer is to change voltages from high to low, or vice versa, with minimal loss of power. In order for this process to happen effectively, the transformer must be well protected.
There are many types of transformer protection devices available on the market, each designed for a specific type of transformer.
The most common type of transformer protection is thermal protection. Thermal protectors are installed in transformers to prevent overheating due to faults in the system.
These devices work by sensing the temperature inside the transformer and automatically shutting off the power if it exceeds a certain threshold.
Another type of transformer protection is called magnetic field protection. This type of device protects against damage caused by sudden changes in magnetic fields, such as those caused by lightning strikes.
Magnetic field protectors are typically installed around areas where transformers are located, such as substations and power plants.
Finally, there are also mechanical protection devices available fortransformers. These devices work by physically protecting the transformer from external forces, such as impact or vibration.
Transformer Protection Relay
Transformer protection devices are used to prevent damage to transformers from overcurrents, excessive voltages, and faults on the transformer winding. They are also used to provide remote monitoring of the transformer condition. Transformer protection devices include current-limiting fuses, circuit breakers, differential relays, voltage relays, and thermal overload relays.
Current-limiting fuses are used to protect the secondary winding of a transformer from overcurrents. The fuse is connected in series with the secondary winding and protects the winding by opening the circuit when an overcurrent occurs.
Circuit breakers are used to protect transformers from faults on the primary or secondary side of the transformer.
The breaker is connected in series with the transformer and interrupts the circuit when a fault occurs.
Differential relays are used to protect transformers from faults on either the primary or secondary side of the transformer. The relay compares the current flowing through the primary and secondary windings of the transformer and trips if there is a difference between them.
Voltage relays are used to protect transformers from excessive voltages on either the primary or secondary side ofthe transformer. The relay trips if there is an abnormal voltage increase on either side ofthe transformer. research paper writing service Thermal overload relays are used to protect transformers from overheating due to abnormal loads onthe transformer.
Credit: primeraeng.com
What are the Three Types of Substations?
Substations are an important part of the electric power grid. They help to increase or decrease the voltage of electricity flowing through the power lines. substations can be classified into three types: transmission, distribution, and converter.
Transmission substations step up the voltage from generating plants to extra-high voltage levels for long-distance transmission on the main grid. These substations are usually located near power plants. The high voltages used in transmission minimize energy losses during long-distance transport.
Distribution substations step down the voltage from transmission level to a medium or low voltage used by businesses and residences. Distribution substations are often located near population centers.
Converter substations change direct current (DC) to alternating current (AC) or vice versa.
DC is typically used for short-distance, high-voltage transmissions, while AC is used for long-distance, lower voltage transmissions.
What is the Purpose of a Substation?
A substation is an electrical installation that serves as a junction between transmission lines and distribution lines. The primary purpose of a substation is to switch or transform electricity from one voltage level to another. This can be done by using circuit breakers, transformers, or other devices.
Substations are also used to protect equipment and isolate parts of the electrical grid in case of faults. For example, if there is a power outage on one section of the grid, a substation can be used to reroute electricity around the affected area. This helps prevent widespread blackouts.
What are the Protection Used in Transformer?
There are several protection devices used in transformer. The most common ones include:
-Thermal Protection: This is used to protect the transformer from overheating.
It is usually a thermal switch that will automatically disconnect the transformer if it gets too hot.
-Overcurrent Protection: This protects the transformer from excessive current. It is usually an overcurrent relay that will open the circuit if the current gets too high.
-Undervoltage Protection: This protects the transformer from voltage drops. It is usually an undervoltage relay that will open the circuit if the voltage gets too low.
What is the Protection for a Distribution Transformer Station?
A distribution transformer station is a facility where electricity is transformed from a high voltage to a lower voltage for distribution to end-use customers. The first step in the transformation process is to use large transformers to bring the voltages down to a manageable level. Next, smaller transformers are used to further reduce the voltages to the level required by homes and businesses.
The distribution transformer station also includes switchgear, which is used to connect and disconnect different parts of the system, as well as provide protection against electrical faults.
Conclusion
A substation is a critical part of the electrical grid, providing a link between high-voltage transmission lines and the lower-voltage distribution lines that serve homes and businesses. substations come in a variety of shapes and sizes, but all share one common purpose: to keep electricity flowing safely and reliably to consumers.
The Protection substation is one type of substation that plays an important role in maintaining the stability of the electrical grid.
A protection substation is typically located near a power plant or other large source of electricity. Its job is to monitor the flow of electricity and automatically shut down equipment if there is an abnormal condition. This helps prevent damage to equipment and ensures that power can be quickly restored in the event of an outage.
