A substation is a vital part of an electrical grid. It is where high-voltage transmission lines connect to lower-voltage distribution lines. The substation transforms the high voltage electricity into a lower voltage that is safe for homes and businesses.
The substation is an important part of the power system. It is required to maintain voltage and improve power quality. The substation also provides a point of connection for consumers.
How Do Substations Work?
What is Substation
A substation is an electrical power switching and/or transforming facility which may be located either indoors or outdoors. Substations are typically connected to high-voltage transmission lines, medium-voltage distribution lines, or low-voltage distribution systems and have switches, voltage transformers, and/or current transformers to control voltages and currents.
Substations can be used for various purposes including:
– Switching or rerouting electricity from one set of transmission or distribution lines to another
– Increasing or decreasing the voltage of electricity
– Connecting different types of generation facilities such as nuclear plants, coal plants, hydroelectric plants, solar farms, and wind farms together
– Connecting loads (homes, businesses) to the electric power system
In order for electricity to be delivered to homes and businesses in a safe and reliable manner, it must first be generated at a power plant then transmitted across long distances at high voltages through the electric grid. Once the electricity reaches its destination – usually a substation – it needs to go through a process called “transmission and distribution” in order to lower the voltage so that it can be used by customers.
Transmission is the moving of large amounts of energy over long distances at very high voltages (usually 115 kV up to 765 kV). This is done using metal wires suspended on metal towers called “transmission lines”. The higher the voltage, the less current is needed to transmit a given amount of power because resistance losses are proportional to current.
Thus, using high voltages reduces energy losses during transmission allowing more electricity to be sent over longer distances with fewer conductors (wires). Because they carry large amounts of energy at high voltages, great care must be taken when working on or near transmission lines.
Distribution is the delivery of electricity from substations closer to customers where the voltage has been lowered via step-down transformers for safety reasons.
The typical household uses 240 volts while most commercial buildings use 208 volts; thus requiring two sets of three wires – one phase wire plus two neutral wires – instead of just one phase wire like in transmissionsubstations . A single phase circuit breaker will protect against overloads but not faults whereas a three phase circuit breaker protects against both overloads and faults by opening all three phases simultaneously should any problems occur.
How Does a Substation Work
A substation is a critical part of the electrical grid. It is a junction point where high-voltage transmission lines meet lower-voltage distribution lines or where multiple generation sources connect to the grid. Substations transform voltage from high to low, or the reverse, using transformers.
They also can switch circuits to direct power flow and protect equipment and people in the event of an electrical fault.
Substations are typically located away from heavily populated areas because of the amount of space they require and because of the potential hazards associated with high voltages. The area surrounding a substation is fenced off and posted with warning signs to keep unauthorized people out for their own safety.
Inside the substation, large metal plates called busbars collect electricity coming in from the transmission lines at high voltage levels (typically 115,000 volts or more) and deliver it toTransformers that step down this voltage for distribution on lower-voltage feeder circuits (usually between 2,400 and 34,500 volts). breakers and switches regulate power flow by making or breaking circuit connections as needed. These devices are operated manually or automatically according to predetermined settings that take into account factors such as line conditions, time of day, and system demand.
Protective relays monitor electrical conditions on all parts of the system constantly and automatically take action if they detect abnormal conditions that could damage equipment or endanger personnel—such as sudden increases in current flow caused by faults (short circuits). Fuses mounted on poles or towers may provide additional protection by “blowing” themselves open if too much current flows through them, interrupting faulty circuit connections before they can cause serious damage elsewhere in the system.
Distribution Substation
A distribution substation is a power substation where electricity is transformed from medium voltage to low voltage, before it is delivered to end-users or customers.
The first distribution substations were built in the late 19th century. They took high voltage from transmission lines and stepped it down to levels that could be used by local businesses and households.
Today, distribution substations are an essential part of the electric power grid. They help ensure that electricity can flow safely and efficiently from generation sources to consumers.
There are three main types of distribution substations: radial, looped, and network.
Radial substations are the simplest type, with one incoming line and multiple outgoing lines. Looped substations have two or more incoming lines and multiple outgoing lines, providing redundancy in case one line goes down. Network sub stations are the most complex type, with multiple incoming and outgoing lines crisscrossing each other.
No matter what type of distribution substation you need, ABB has the products and services to help you build a safe, reliable, efficient system.
Substation Voltage Levels
Voltage levels in a substation can range from low to very high. The level of voltage will determine the amount of power that can be safely handled by the substation equipment.
Substations are classified by the maximum voltage that they can handle.
There are three general classifications: low, medium, and high.
Low voltage substations will have voltages no greater than 600 volts (V). Medium voltage substations will have voltages between 601 V and 69 kV.
High voltage substations will have voltages between 69 kV and 345 kV. Extra-high voltage (EHV) substations handle voltages above 345 kV.
The highest safe operating Voltage for any given piece of equipment is known as the maximum continuous operating voltage or maximum permissible exposure limit (MPEL).
This is usually 10% higher than the nominal or rated Voltage level for that equipment. For example, if a piece of equipment is rated for 138 kV, its MPEL would be 151 kV. The MPEL takes into account both normal conditions and emergency conditions such as faults which could result in momentary increases in Voltage levels.
Transmission Substation Vs Distribution Substation
Transmission and distribution substations serve different but important functions in the electric grid. Both types of substations take high-voltage electricity from the transmission system and lower the voltage so it can be used by customers.
A transmission substation connects to the high-voltage transmission system and steps down the voltage for use in the distribution system.
A distribution substation connects to the lower-voltage distribution system and steps down the voltage for customer use.
The main difference between transmission and distribution substations is their size and capacity. Transmission substations are much larger than distribution substations because they have to handle much higher voltages.
For example, a typical transmission substation might have transformers that step down voltages from 115,000 volts to 34,500 volts. In contrast, a typical distribution substation might have transformers that step down voltages from 12,470 volts to 240 volts.
Transmission Substation
A transmission substation is a type of electrical substation that is used to switch high-voltage electricity between different parts of a power grid. These substations are typically located at the edge of a power grid, where the voltage needs to be reduced before it can be used by consumers. Transmission substations are also used to connect different parts of a power grid together, or to connect a power grid to an external power source.

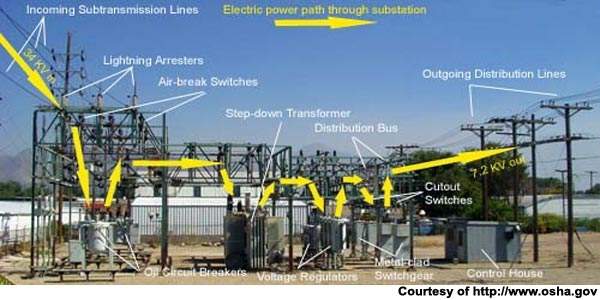

Electrical Substation Components
An electrical substation is a crucial link in the power grid. It transforms voltage from high to low or vice versa, making it possible for electricity to be carried long distances. The components of a substation work together to make this happen.
The first component is the transformer. This device changes the voltage of the electricity passing through it, either increasing or decreasing the amount of current. Transformers are typically located near the generating station, where voltages are very high.
The second component is the switchgear. This equipment controls the flow of electricity within the substation, and can be used to isolate sections for maintenance or repair. Switchgear also protects against overloads by automatically opening and closing circuit breakers.
The third major component of a substation is the control house. This building houses all of the electronic equipment needed to monitor and control operations at the facility. From here, operators can remotely control switches and other devices within the substation.
Credit: electrical-engineering-portal.com
What is the Need for Substation?
A substation is a critical part of the electric power grid. It is a facility where electricity is generated, transformed, and distributed to consumers. A substation consists of high-voltage equipment that transforms voltage from transmission lines to a lower voltage that can be used by distribution lines.
Substations also contain switchgear, which are devices that control, protect, and isolate electrical equipment.
The need for substations arises from the fact that electricity must be generated at a very high voltage in order to transmit it over long distances without losses. This high voltage cannot be used directly by consumers because it would damage most electrical equipment.
Therefore, substations are necessary to step down the voltage so that it can be safely distributed to consumers.
Another reason why substations are needed is because the demand for electricity varies throughout the day. The power grid must have enough flexibility to meet this changing demand, and substations play an important role in this by providing a way to quickly change the amount of power flowing through the grid.
For example, if there is an unexpected increase in demand, a substation can quickly ramp up generation or import power from another area of the grid to meet this demand.
Substations also provide an important function in protecting equipment from faults on the electric power system. When there is a fault (such as a short circuit), currents can rise to extremely high levels which can damage or destroy equipment.
Substations contain devices called circuit breakers which automatically disconnect parts of the system when they sense a fault, preventing damage and allowing repairs to be made quickly and safely.
In summary, substations are essential for generating, transforming, and distributing electricity safely and efficiently across long distances.
What is the Purpose of Electrical Substation?
An electrical substation is a crucial part of the electricity network. Its purpose is to receive electricity from the generating plant and then send it out to homes and businesses. The substation also regulates voltage so that the power flowing through the network is at a safe level.
What are the Advantages of Substation?
There are many advantages to having a substation. Perhaps the most obvious benefit is that it allows for the distribution of electricity over a wide area. Without a substation, an electrical grid would be limited to a small radius around the power plant.
A substation increases the efficiency of the grid by allowing electricity to be sent where it is needed, when it is needed.
Another advantage of substations is that they help to regulate voltage. The voltage of electricity can fluctuate for a variety of reasons, but if it gets too high or low it can damage equipment or even cause fires.
Substations have devices called transformers which step up or down the voltage as necessary to keep it within safe levels.
Substations also provide a measure of safety for both workers and the general public. Because substations contain high-voltage equipment, they are typically surrounded by fences and posted with warning signs.
This helps to ensure that people do not come into contact with live wires or other dangerous parts of the substation.
What is the Most Important in a Substation?
In a substation, the most important thing is the safety of the equipment and personnel. The substation must be designed to protect against fire, electrical shock, and other hazards. It must also be designed to withstand extreme weather conditions and natural disasters.
Conclusion
A substation is a crucial part of the electrical grid. It transforms voltage from high to low, or vice versa, in order to regulate the flow of electricity. Without a substation, the electrical grid would not be able to function properly.
