Substation Room

A substation is a power plant where electricity is generated and distributed to consumers. The room in which the substation is located is typically large and well-ventilated to prevent overheating of equipment. Inside the substation room, there are usually several pieces of machinery that generate electricity, as well as distribution panels that send electricity to different parts of the building or home.

33/11kv substation panel l substation control panel l substation control room Equipments

Substations are an important part of the electrical grid. They help to ensure that electricity is distributed evenly and efficiently. The room where a substation is located is called a substation room.

A substation room typically contains a number of pieces of equipment, including switchgear, transformers, and circuit breakers. This equipment helps to regulate the flow of electricity through the substation. The layout of a substation room can vary depending on the specific needs of the facility.

However, there are some common features that most substation rooms include. The first thing you’ll notice when you enter a substation room is the high ceilings. This is necessary to accommodate the large pieces of equipment inside.

The walls are also usually lined with cabinets or shelves that hold various tools and supplies. In addition, there are often monitors or control panels in the room so that operators can monitor the status of the equipment. One of the most important features of a substation room is its safety precautions.

There are typically several fire extinguishers in the room, as well as emergency exits. The floors are also usually slip-resistant to prevent accidents.

Substation Room Requirements

Substations are critical components of the electrical grid, and their design must take into account a variety of factors to ensure reliable operation. One important factor is the room requirements for various substation equipment. The first thing to consider is the size of the room itself.

The National Electrical Code (NEC) requires that all indoor substation rooms have a minimum floor area of 300 square feet (27.9 m2). The NEC also requires a minimum ceiling height of 7 feet (2.1 m), and recommends a clear working space around equipment of at least 3 feet (0.9 m). In addition to size, other important considerations for indoor substation rooms include ventilation, temperature, humidity, and lighting.

Ventilation is necessary to remove heat generated by the substation equipment and maintain a comfortable working environment for personnel. The NEC requires a minimum air exchange rate of 1 cubic foot per minute per square foot (0.00508 m3/s•m2) of floor area, with additional ventilation required if the room contains transformers or other heat-generating equipment. Temperature and humidity must be controlled to protect sensitive electronic equipment from damage due to condensation or excessive temperatures.

The NEC requires that indoor substation rooms be maintained at a temperature between 50°F (10°C) and 104°F (40°C), with a maximum relative humidity of 60%. Lighting must be adequate for safe work conditions and must meet applicable energy codes.

Substation Components

A substation is a vital part of the electrical grid. It provides a place where electricity can be safely generated, transformed, and distributed to homes and businesses. A substation consists of several key components, each of which plays an important role in keeping the power flowing.

The first component is the generator. This is the device that produces electricity from some source of energy, such as coal, nuclear power, or hydroelectricity. The electricity produced by the generator is then fed into a transformer.

The transformer increases or decreases the voltage of the electricity so that it can be used efficiently by consumers. For example, most appliances in homes use 110-volt current, while heavy industry uses much higher voltages. Once the voltage has been transformed, it flows through circuit breakers to distribution lines.

The circuit breakers protect against overloads by automatically shutting off the flow of electricity when necessary. Finally, the distribution lines carry the electricity to homes and businesses where it powers lights, appliances, and other devices.

Substation Building

A substation is a critical part of the electrical grid. It is a facility where electricity is transformed from one voltage to another, or distributed to homes and businesses. A substation can be as small as a single transformer, or it can be a large complex with several buildings and hundreds of pieces of equipment.

The heart of any substation is the switchgear. This is the equipment that controls the flow of electricity within the substation. The switchgear includes circuit breakers, switches, and other devices that protect equipment and prevent accidents.

A typical substation also has buildings that house control rooms, offices, storage areas, and maintenance facilities. These buildings are designed to provide a safe environment for personnel and to minimize the risk of fire or explosion.

Function of Substation

A substation is an electrical system that transforms voltage from high to low, or the reverse, within a generating station. It also serves as a switching center where circuit breakers and switches direct the flow of electricity. Substations are typically located near power plants or along transmission lines.

There are two types of substations: primary and secondary. Primary substations connect transmission lines and distribute power to secondary substations, which further distribute electricity to lower voltages for industrial, commercial, and residential use. The main components of a substation are transformers, circuit breakers, switches, disconnects, busbars, capacitor banks and reactors.

The purpose of each component is as follows: Transformers change the voltage level so that it can be stepped up for long-distance transmission or stepped down for local distribution over lower-voltage power lines. A transformer consists of two coils of wire wrapped around a common iron core.

When AC current flows through the primary coil (input), it creates a magnetic field in the iron core that induces a current in the secondary coil (output). The number of turns in each coil determines the transformation ratio. For example, if the primary coil has 100 turns and the secondary coil has 50 turns, then the voltage at the secondary will be one-half that at the primary (all other factors being equal).

If we step up the voltage by doubling it in the primary winding before sending it out on its way across country via high-voltage transmission lines to where it needs to go – say from 115 kV to 230 kV – we can reduce energy losses due to line resistance by using smaller diameter wires while still maintaining adequate strength against wind loading .We can also transmit this higher voltage with less current than would be required if we sent out 115 kV; this reduces conductor size requirements and again decreases energy losses..

By stepping down voltages at various points along our distribution system we eventually get voltages low enough so they can be used safely in homes and businesses (usually 120/240 volts AC). Circuit breakers protect equipment from damage caused by overloads or short circuits by automatically opening (“breaking”) an electrical circuit when necessary . Switches do not have this automatic protection feature but otherwise serve a similar function; they open or close an electrical circuit manually when needed so that maintenance work can be done on equipment without shutting down an entire system .

Electricity Substation Next to House

If you live in a house that is next to an electricity substation, there are some things you should know. First, substations are very safe. They are designed to contain any electrical faults so they pose no danger to nearby homes or businesses.

However, because substations do produce a lot of noise, you may want to consider soundproofing your home if the noise is bothersome. Additionally, substations can emit a faint humming noise that can also be annoying. If this is the case, please contact your local utility company to discuss possible solutions.

Switching Substation

A substation is a part of an electrical grid that serves as a switch between high-voltage transmission lines and lower-voltage distribution lines. A substation may also be used to convert between alternating current (AC) and direct current (DC). Substations are typically owned and operated by electric utilities.

A typical substation includes one or more transformers, switches, circuit breakers, busbars, and other equipment. The primary purpose of a substation is to switch power from one set of transmission lines to another or from one voltage level to another. A substation may also be used for power factor correction, voltage regulation, or load balancing.

In order for a substation to function properly, it must be designed and built according to strict safety standards. These standards are necessary to protect both the workers who operate the substation and the public who live nearby.

Electrical Substation near Me

If you live in or near a city, chances are there’s an electrical substation nearby. But what exactly is a substation? And what does it do?

An electrical substation is a facility where electricity is generated, transmitted, and distributed to consumers. Substations transform high-voltage electricity from the power plant into lower voltages that are safe for household use. They also help regulate the flow of electricity so that power can be distributed evenly throughout the grid.

While most people never give them a second thought, substations are an essential part of our electric infrastructure. Without them, we wouldn’t have the reliable access to electricity that we enjoy today.

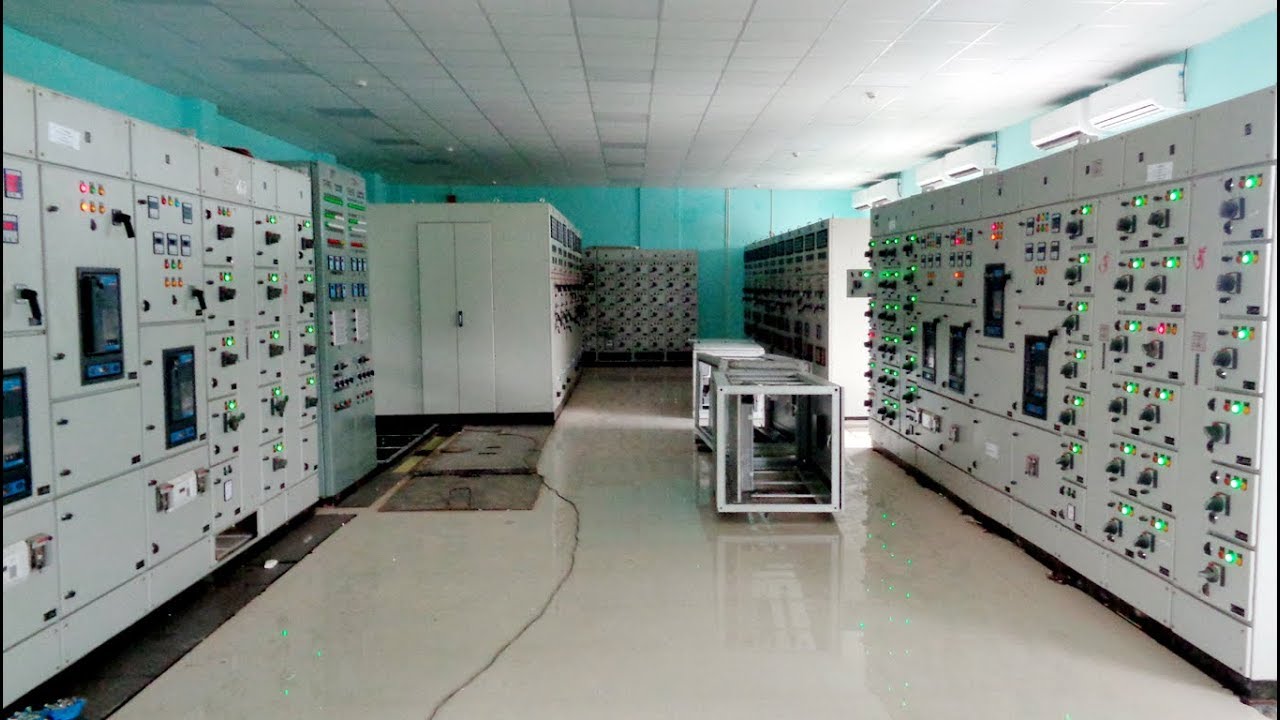

Substation Room

Credit: www.youtube.com

What is a Substation Room?

A substation room is a space within an electrical power station where equipment is located to change the voltage of electricity before it is distributed. This equipment includes transformers, circuit breakers, and other devices. The substation room is typically located near the power plant.

What is the Function of a Substation?

A substation is a critical part of the electrical grid. Its function is to take high-voltage electricity from the power plant and step it down to a lower voltage that can be used by homes and businesses. The substation also includes equipment to help regulate the flow of electricity and keep it stable.

What is a Substation And Why It is Needed?

A substation is an electrical power facility where voltage is transformed from high to low, or the reverse, using transformers. Substations are needed to provide electricity at a variety of voltages for different users. For example, in a city there may be one substation for homes and businesses, another for industry, and another for street lighting.

Why is a Substation Called a Substation?

A substation is a type of power plant that transforms electricity from high voltages to the low voltages used in homes and businesses. The word “substation” comes from the fact that these plants are typically located away from populated areas, or “suburbs.” Substations take the form of either an outdoor or indoor facility.

Outdoor substations are usually elevated on concrete pads or steel frames, while indoor substations are housed in buildings. Both types use a variety of devices to step down the voltage, including transformers, circuit breakers, and disconnects switches. The first thing that incoming electricity encounters at a substation is a transformer.

A transformer is an electrical device that uses inductance to convert between high and low voltages. The primary coil of wire winding inside the transformer is connected to the high-voltage side of the power grid, while the secondary coil is connected to the low-voltage side. As electricity flows through the primary coil, it creates a magnetic field around the secondary coil.

This induces a current in the secondary coil, which steps down the voltage so it can be used by homes and businesses served by this substation.


The substation room is one of the most important rooms in a power plant. It houses the equipment that controls the flow of electricity from the power plant to the grid. Without this room, the electricity would not be able to reach homes and businesses.

The substation room is typically staffed by a team of operators who monitor the equipment and make sure that it is working properly.
